Unimog

Unimog. The universal power tool.

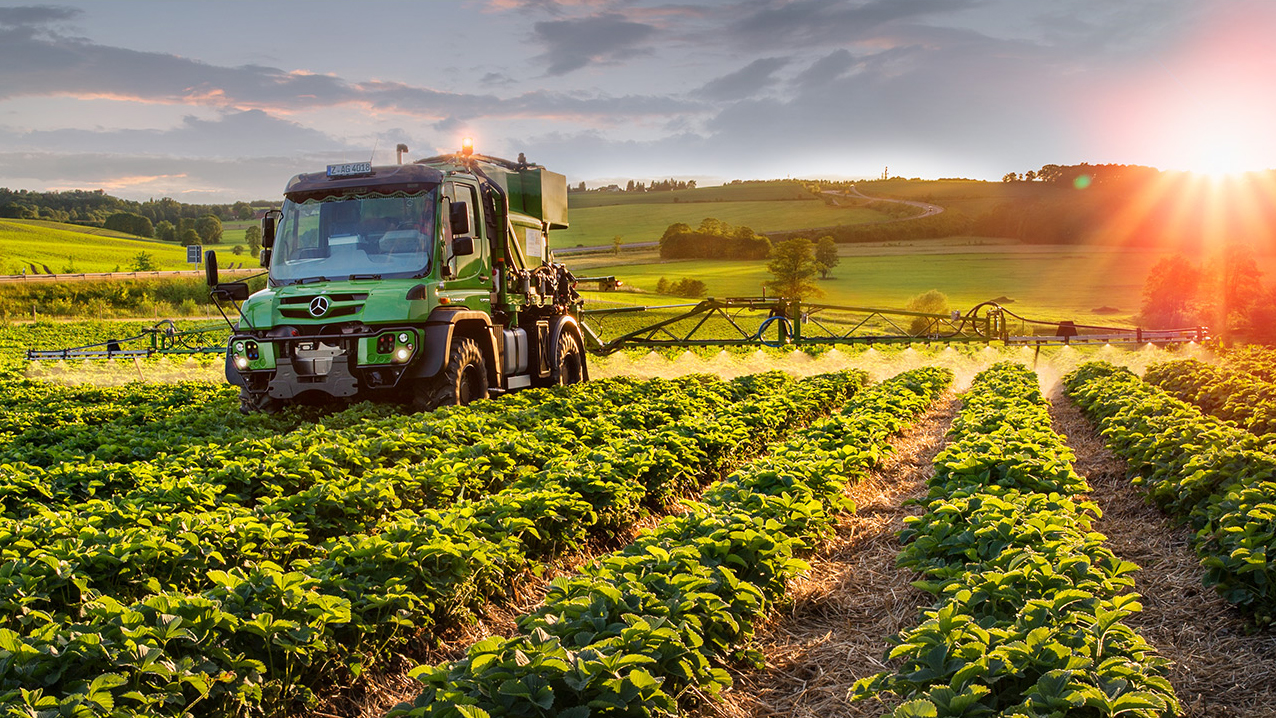

Robustness, reliability, and impressive versatility have made Unimog the ‘universal power tool’ of choice for several decades. A vehicle class in its own right, Unimog features a wide range of model variants with a broad scope of practical applications across numerous industries – such as agriculture, forestry, construction, lines maintenance and other specialist services.

Unimog U216-U530

Compact and adaptable implement carrier.

The U216-U530 range is built around an extremely compact chassis with standardised interfaces for various attachments, making these trucks highly effective in almost any situation. All powered by Euro 6 engine options for high efficiency and low emissions, these Unimog trucks are ready to take on the tools for the job.

Advantages at a glance.

Powerful front (160kW) and rear (220kW) PTO shafts.
Internal and external interfaces to connect electrical equipment.
Standardised front mounting plate.
Winch support.
Implement fittings.
Load-sensing and VarioPower® power hydraulics.
Removable multifunction joystick for greater operational control.

U4000-U5000 / U4023-U5023.

The next step for off-road applications.

Unimog trucks for sale NZ

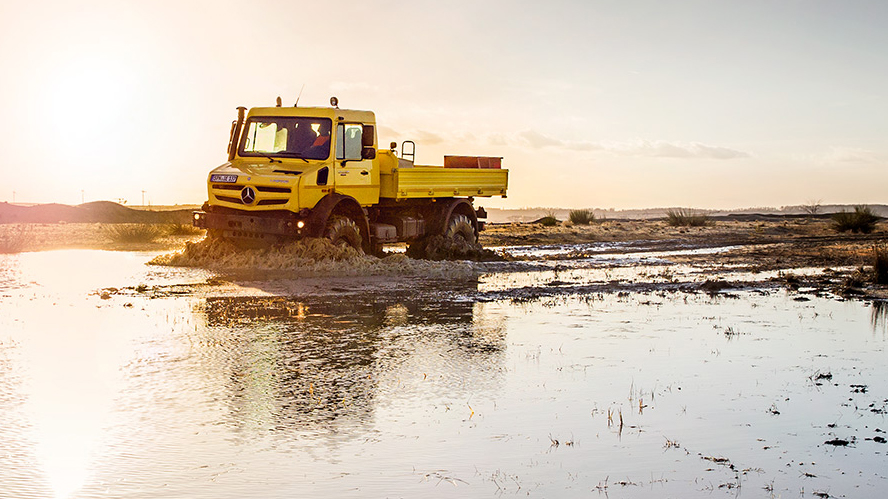

When all-wheel drive vehicles reach their limits, it’s time to turn to the U4000-U5000 / U4023-U5023 ranges. With an array of attachment and mounting possibilities, these Unimog trucks are as highly adaptable as they are capable away from the road.

Advantages at a glance.

Short frame overhangs.
Large approach and departure angles.
Fording capability up 1.2m.
Large off-road tyres ensure high traction with low rolling resistance.
Tirecontrol plus – automatic adjustment of tyre pressure to suit varying terrain.

U216-U530. Rock steady.

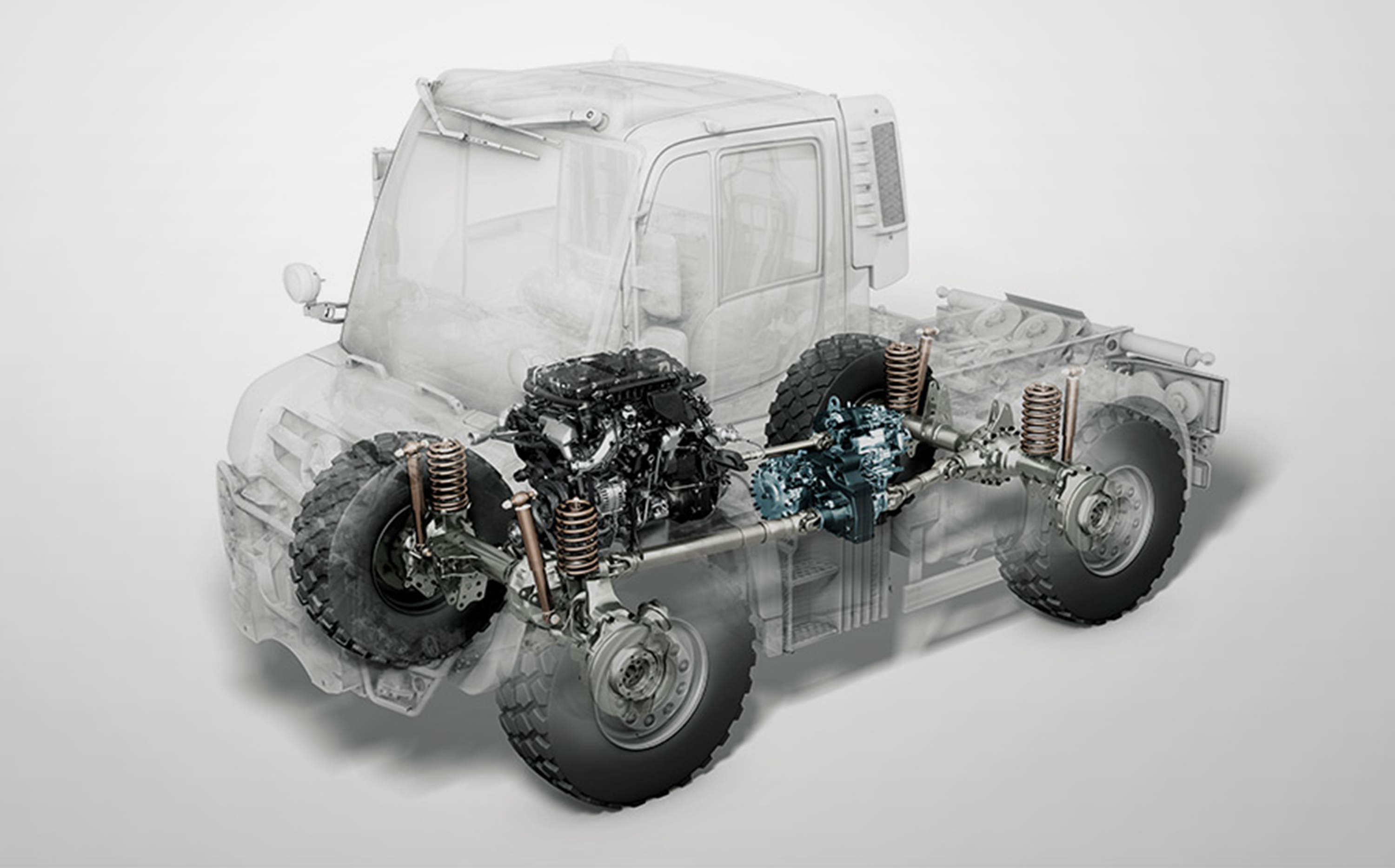

With its tried-and-tested chassis, based on a robust sub-frame, Unimog can master the biggest of challenges in tough, everyday operations.

Advantages at a glance.

Permanent all-wheel drive
Portal axles enable good ground clearance
High ride comfort
Excellent axle articulation
Differential locks on both axles.

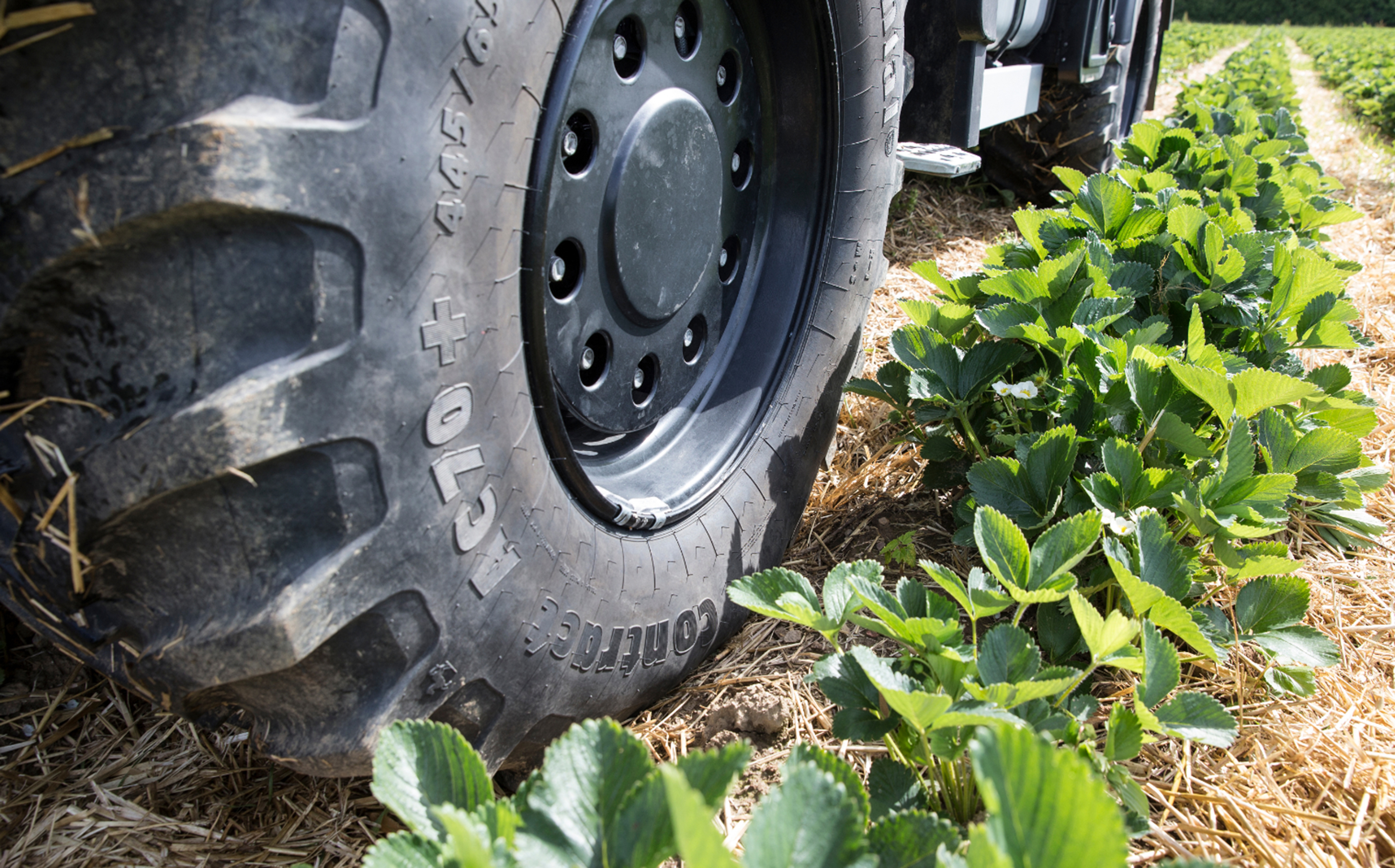

Tirecontrol plus – automatic adjustment of tyre pressure to suit varying terrain

All-wheel steering. Available on U423 to U530 models, optional rear-axle auxiliary steering reduces the turning circle by 20%. Four types of steering are available: normal steering, all-wheel steering, manual steering and offset track steering (or ‘crab steering’), which can help counteract downhill force. Only the rear wheels steer when reversing.

U4000-U5000 / U4023-U5023. Every angle covered.

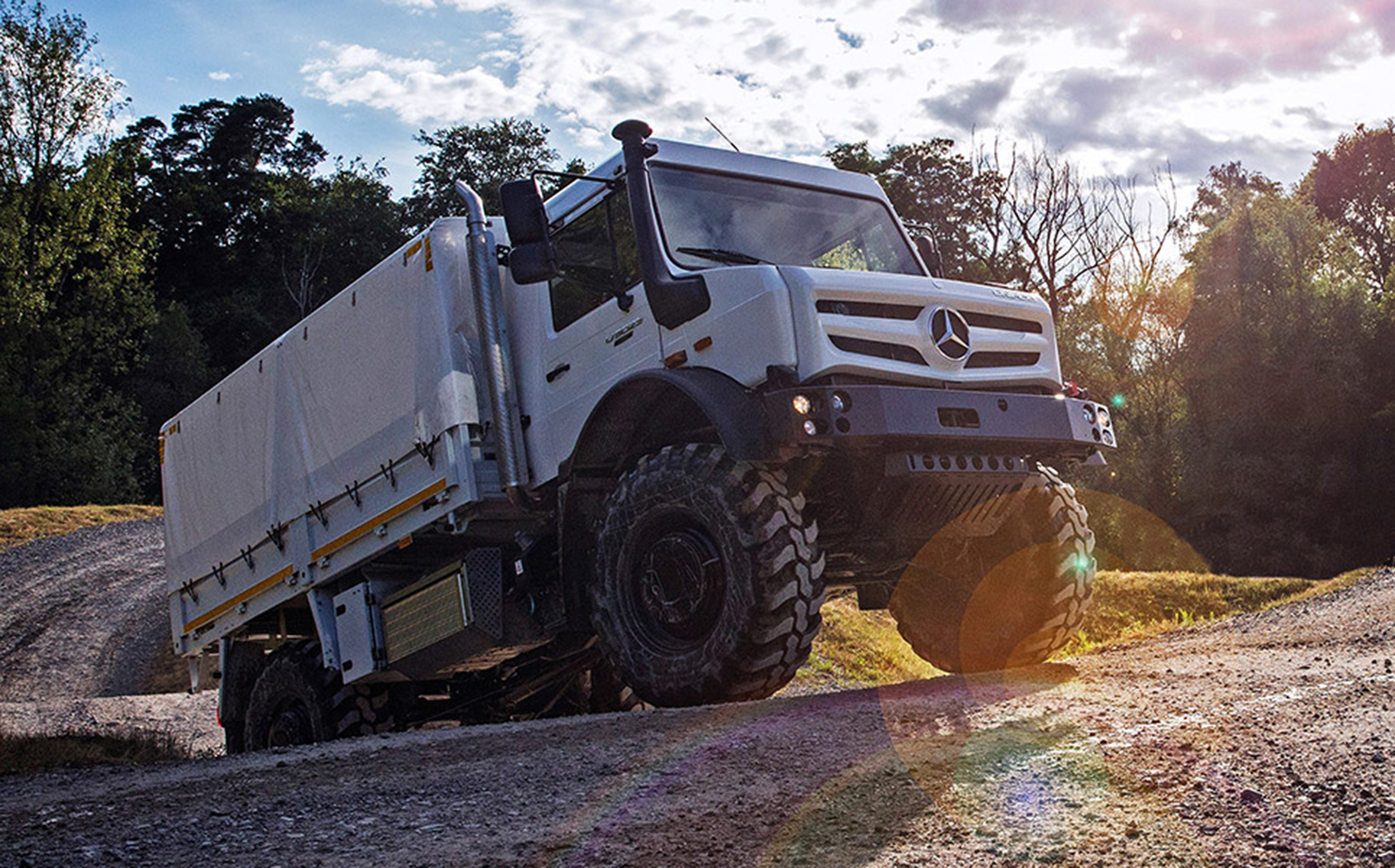

At the core of the Unimog’s all-terrain capabilities is its cranked frame with welded-in tubular cross members, which lowers the centre of gravity and, in conjunction with portal axles, maximises ground clearance.

A special torque tube design facilitates extreme spring travel and diagonal axle articulations up to 30°, with the propeller shaft of the torque tube enclosed to protect it from dirt and damage.

As the frame is completely welded, it possesses great torsional resistance (up to 600mm diagonally).

The low centre of gravity and extreme torsional flexibility provide additional safety on steep uphill and tilting angles, while stabiliser bars at the front and rear promote high cornering stability and driving safety. Furthermore, asymmetrical arrangement of the axle differentials makes it easier to override obstacles

U216-U530. Euro 6 efficiency.

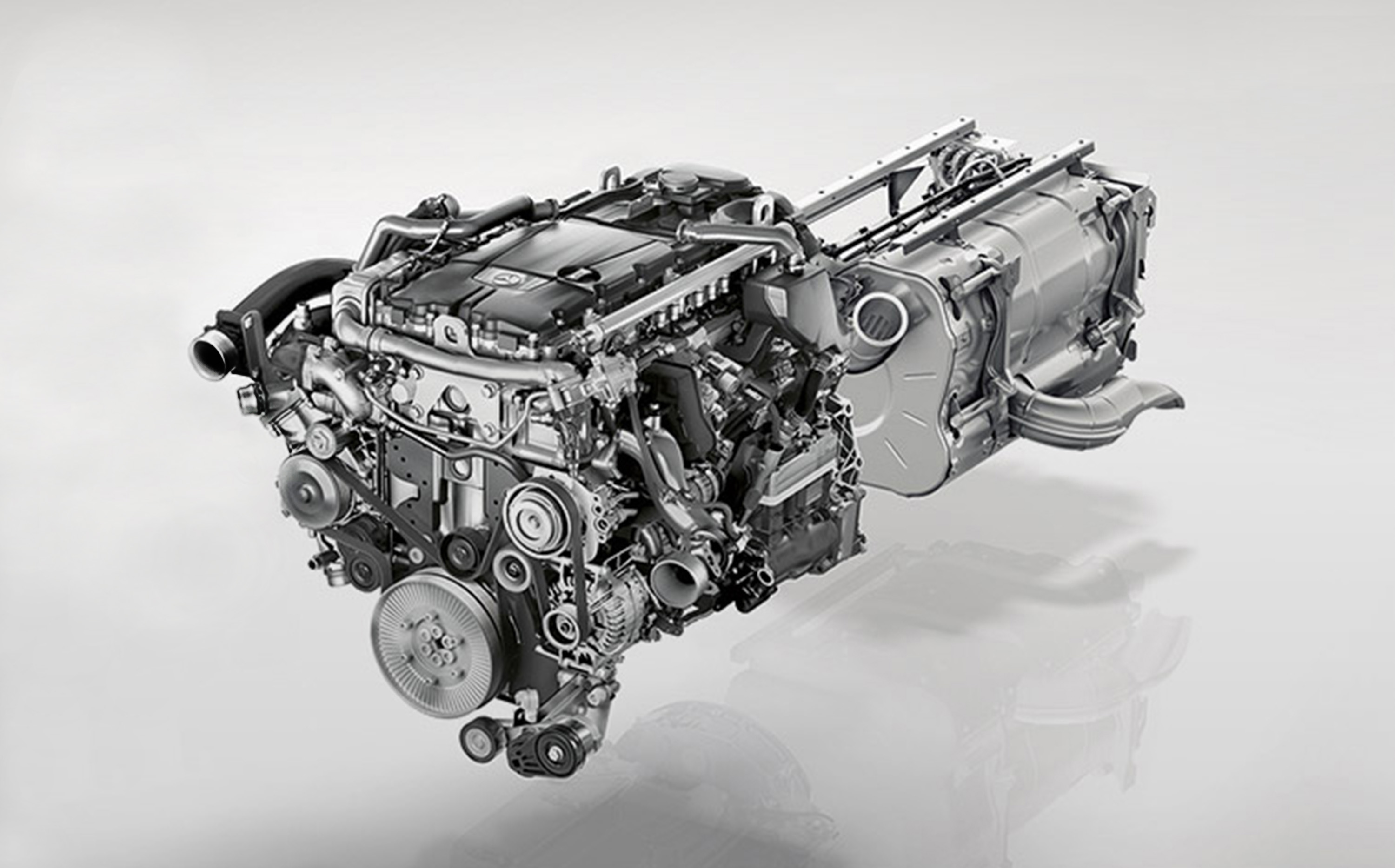

The Euro 6 four-cylinder OM934 and six-cylinder OM936 engine options available in the U216-U530 range deliver up to 177hp (130kW) and 272hp (220kW) respectively, with impressive torque up to 1200Nm.

A premium engine brake reduces mechanical wear and tear on the brakes and contributes to Unimog’s overall economic efficiency.

Characterised by smooth running, a long service life and great efficiency, the fully synchronised electro-pneumatic transmission features eight forward and six reverse gears for excellent tractive power. A forward-reverse switch can be integrated into the multifunction joystick. Two drive programs enable full automatic or automated-manual operation.

U4000-U5000 / U4023-U5023. Proven power.

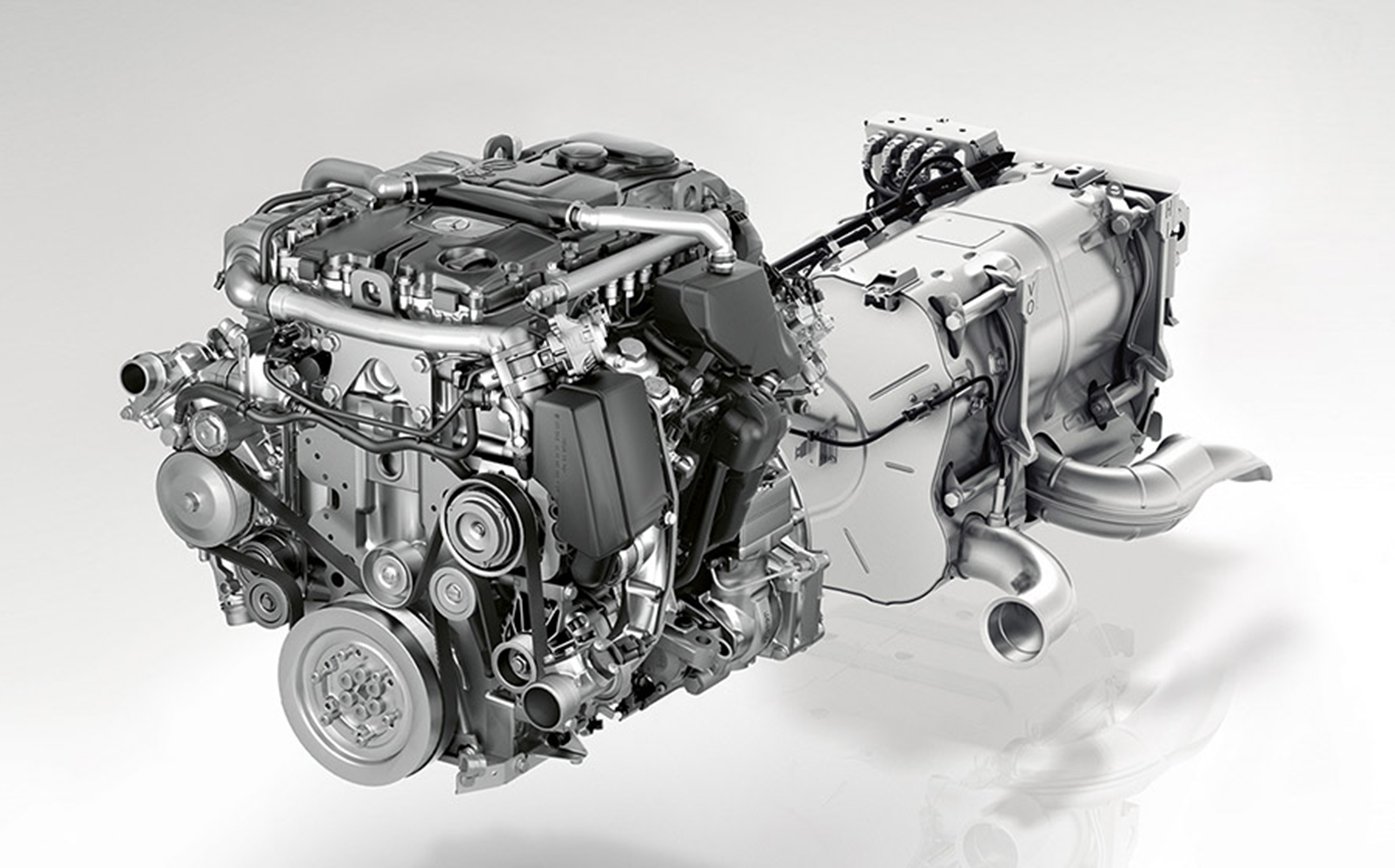

The U4000-U5000 series is available with the Euro 5 OM924 LA engine, delivering up to 177hp (130kW) with peak torque of 810Nm.

The U4023-U5023 series is available with the Euro 6 OM934 LA engine, delivering up to 230hp (170kW) with peak torque of 900Nm.

A premium engine brake reduces mechanical wear and tear on the brakes and contributes to Unimog’s overall economic efficiency.

Characterised by smooth running, a long service life and great efficiency, the fully synchronised electro-pneumatic manual transmission features eight forward and six reverse gears for excellent tractive power.

An additional eight off-road gears (forward and reverse) can be added for maximum traction in the lower speed range from 1-15 kph, as can an electronic automated gearshift option.

U216-U530. Safety covered.

Unimog has safety covered – for occupants and other road users.

Advantages at a glance.

Outstanding forward visibility thanks to a short front-end assembly.
Directional stability.
Precision steering.
Optimal axle load distribution.
Two-circuit service brake system with disc brakes on all four wheels.
Automatic load-dependent brake.
ABS.
Daytime-running lights.

An optional front-end camera and monitoring system also improves vision in the immediate vicinity of the vehicle.

U4000-U5000 / U4023-U5023. In safe hands.

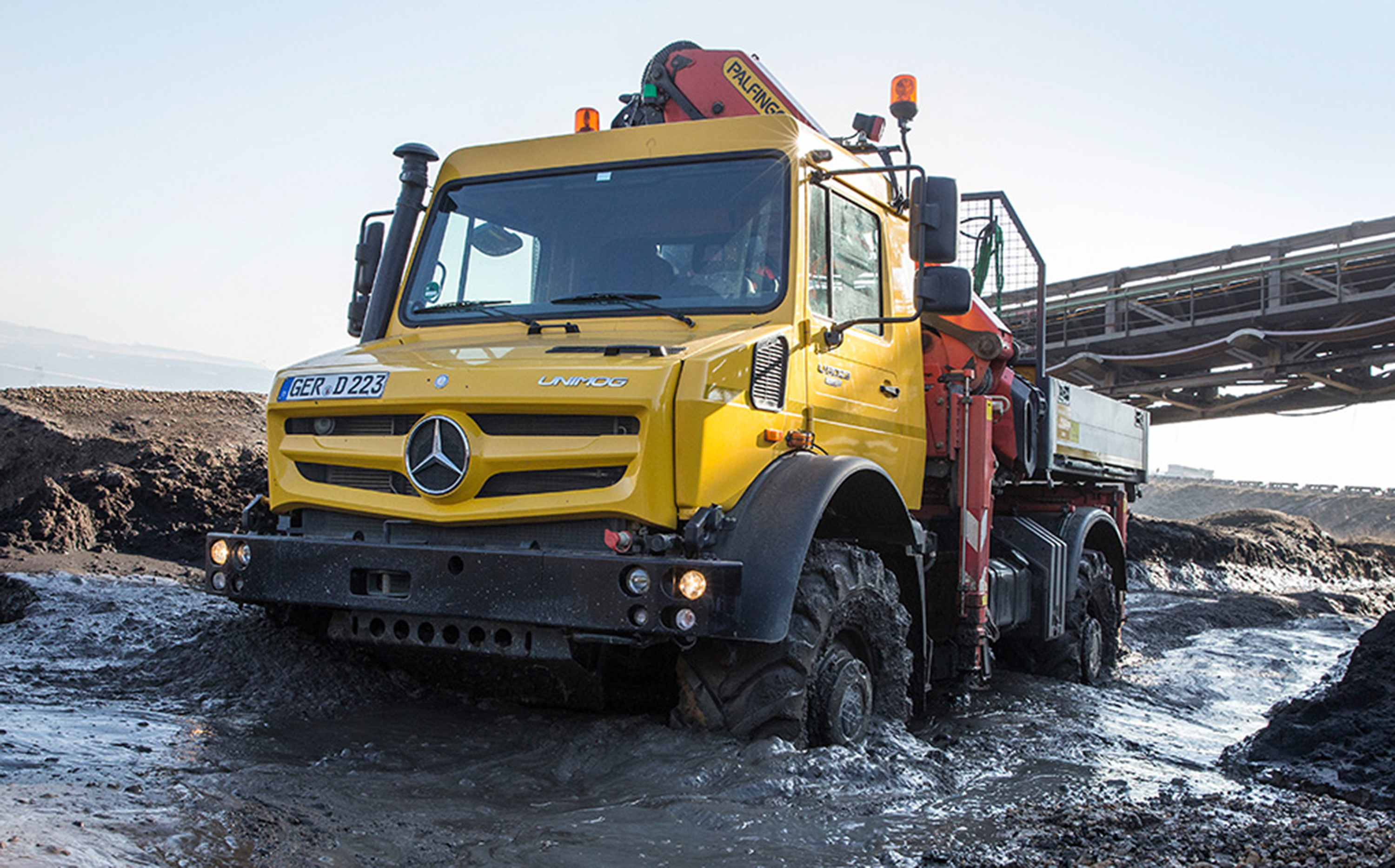

Reliable braking when it counts. A compressed-air, dual-circuit disc braking system brings Unimog to a safe stop, even on long hills and with heavy loads. Additional safety and driving stability are provided by the anti-lock braking system (ABS), which allows the wheels to be locked during off-road use and the braking distance to be shortened by forming a wedge of earth.

Advantages at a glance.

Spring-loaded parking brake.
ABS actuation of every wheel.
Automatic brake pressure control.
